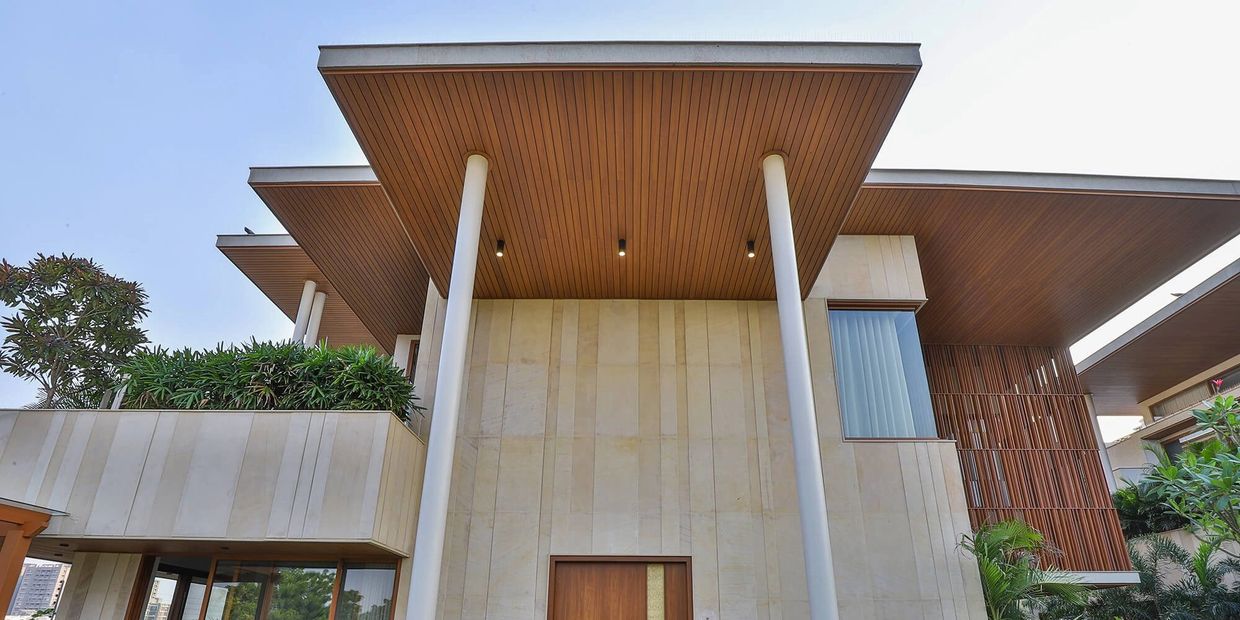

PREMIUM 84/184 C LINEAR CEILING SYSTEM
P.R. FORTILAM 84 C ceiling system comprises of 84 mm x 12.5 mm + 10% panels with 23.9 mm flange roll formed out of 0.50 mm thick G. I sheet. Panels shall be PVC wooden skin plate 140-160 microns polyvinylchloride coated front side. G. I sheet (zinc coating 150 GSM as per UNI EN 10346:2009). Light Reflection should be as per ASTM E-1477-98. Panels are fixed on to roll formed carriers 32 mm wide x 39 mm deep out of 0.6 mm G. I Coil with cutouts to hold the panels in module of 100 mm at maximum 1.6 m c/c without insulation and at maximum 1.5 m c/c with insulation. carrier shall be 60 microns black color powder coating of polyester paint. Carriers are suspended from the roof or truss by 4 mm dia. galvanized steel wire rod hanger with special height adjustment suspension clip at max. 1.3 m c/c. Hangers are fixed to the roof by ‘J’ hooks or ceiling brackets and nylon inserts. Material should match corrosion test or Resistance to salt fog EN13523-8 e ASTM B117-16 300 hour. Panels are factory cut in lengths up to maximum 5 m to suit site dimensions or shop drawings. G.I Edge profiles or wall angles are 24 mm X 24 mm X0.35 mm thick and match the colour of the panel. Panels can be perforated with the dia hole of 2.5 mm or 1.8 mm also. The panels can have non-woven tissue over the ceiling for improving acoustics value. Material should pass fire test as per BIS 476PART 6:1989+A 1:2009 & PART 7:1997. raw material with EN13501-1:2019 A2S2D0. All PVC Coated material should pass scratch test and pencil harness test as per ASTM D 3363-92a B.
