Triangle Open Cell


MCRA Triangular open cell ceiling are manufactured from light weight aluminum and G.I folded into U Shape profiles. Each panel has a nominal cell wall thickness of 15mm to give a precise engineered ceiling appearance.

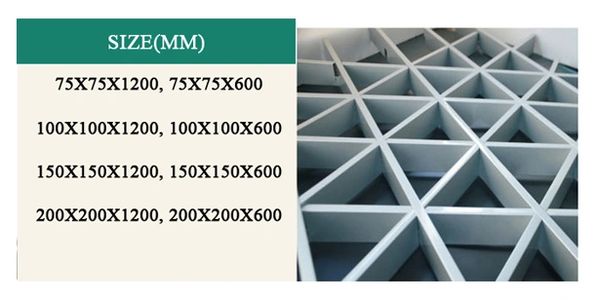

Custom size modules and tile sizes are available, subject to the size being divisible by the available cell sizes.

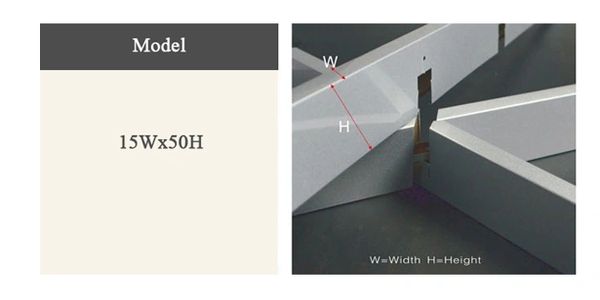

Triangular open cell metal ceiling has a width of 15mm and height 50mm Maximum length available is 2 meter and its thickness is(.45mm) in G.I. The Triangle will be equilateral, one side of triangle is 185 mm & cell size will be 200 mm, weight will be around 7.5 to 8 kgs per Sqm.


Triangle Open Cell Ceiling System

ADVANTAGES



  • Easy access to lighting, ventilation systems, and sprinklers.
  • Strong sense of three-dimension.
  • Triangle open cell ceiling can be matched with all type of light fixtures.
  • The Product plays a prominent role in exhaust ventilation.
  • Versatile range of patterns, configurations, and colors.
  • Available in various interior cell sizes.
  • Eco-friendly.
  • MCRA METAL CEILING PRODUCTS TRUSTED PRODUCT

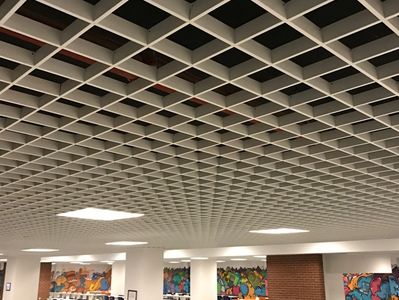

Open Cell Ceiling System

TECHNICAL SPECIFICATION

TRIANGULAR OPEN CELL CEILING SYSTEM TECH SPECIFICATIONS

Download PDF

USES

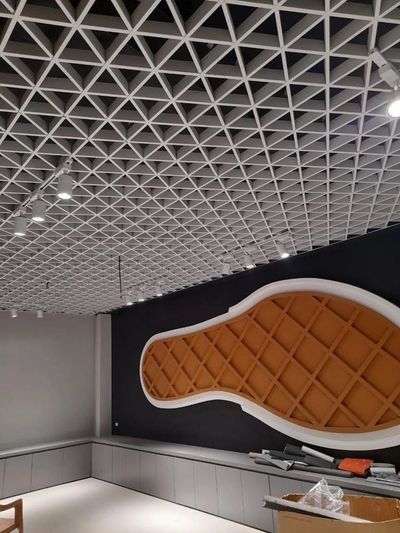

TRIANGLE OPEN CELL CEILING (METAL CEILING) by P. R. Ceiling PRODUCTS  are highly used at Airports, Reception Areas, Bus Stations, Lobbies, Railway Stations, Banquette Halls, Corridors, Showrooms, Department Stores.
